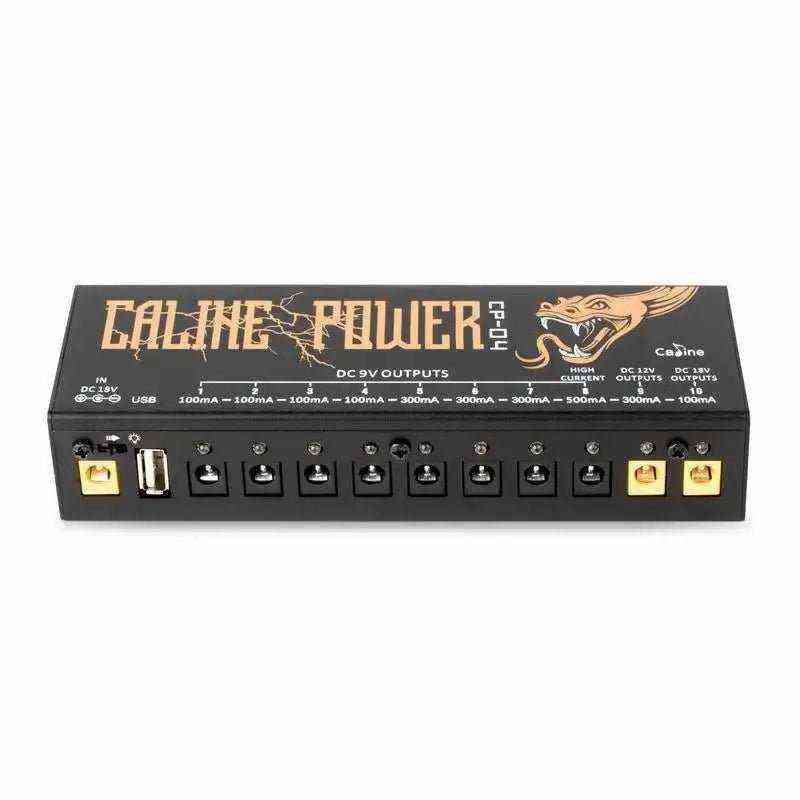

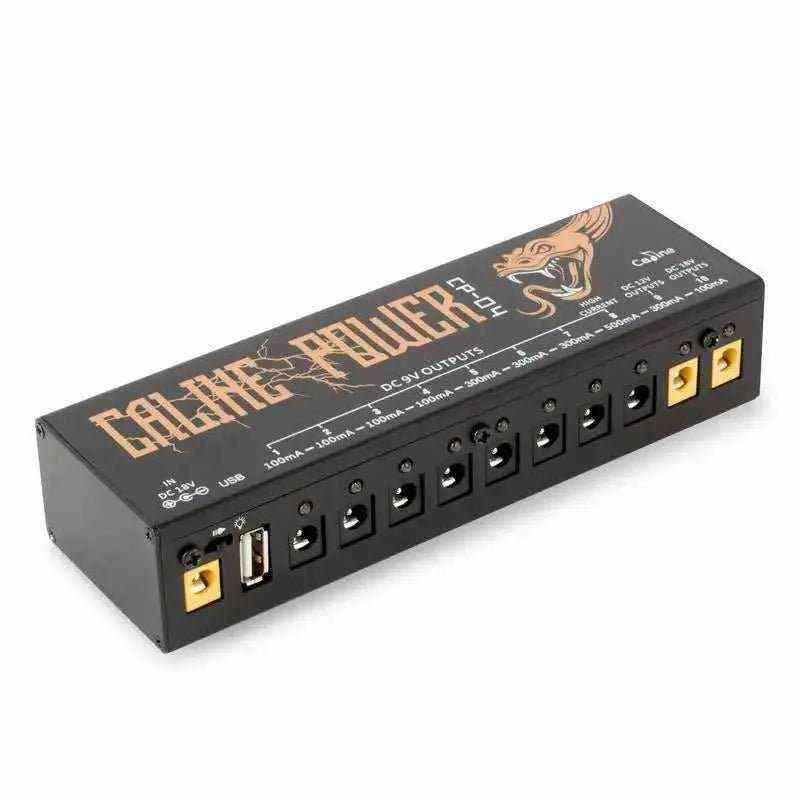

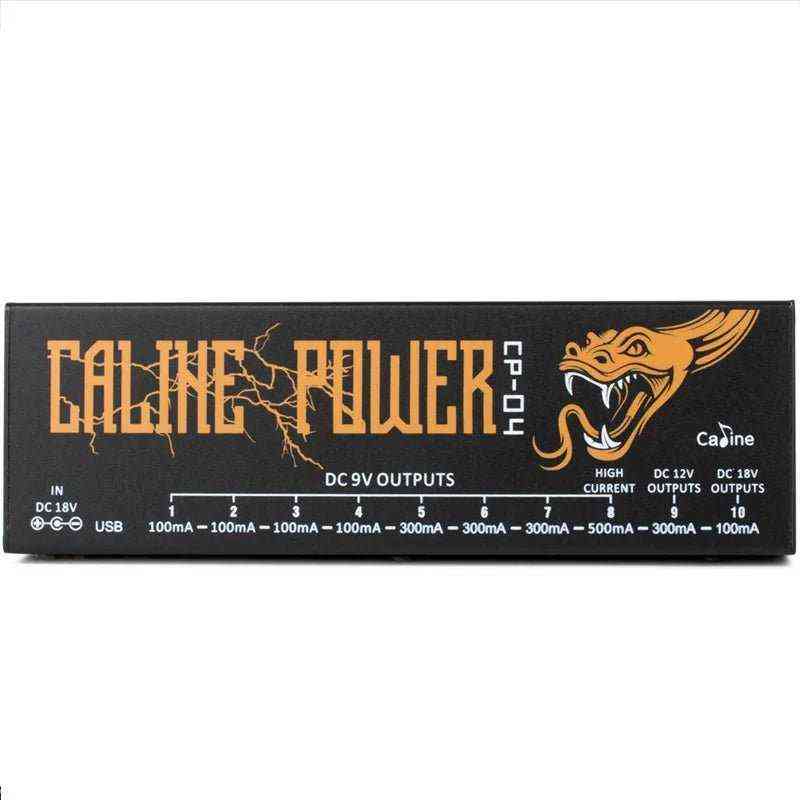

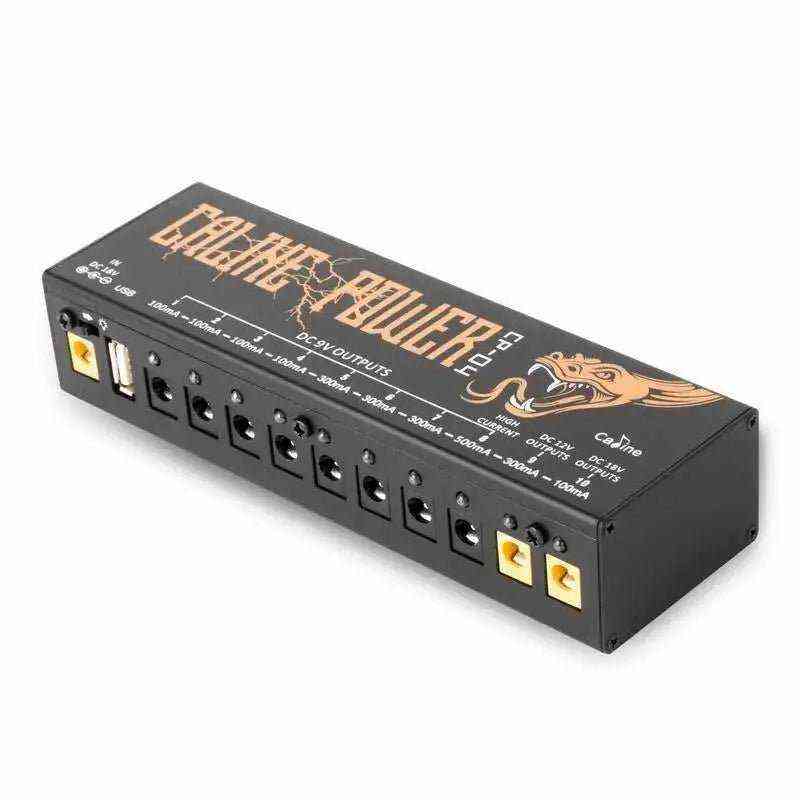

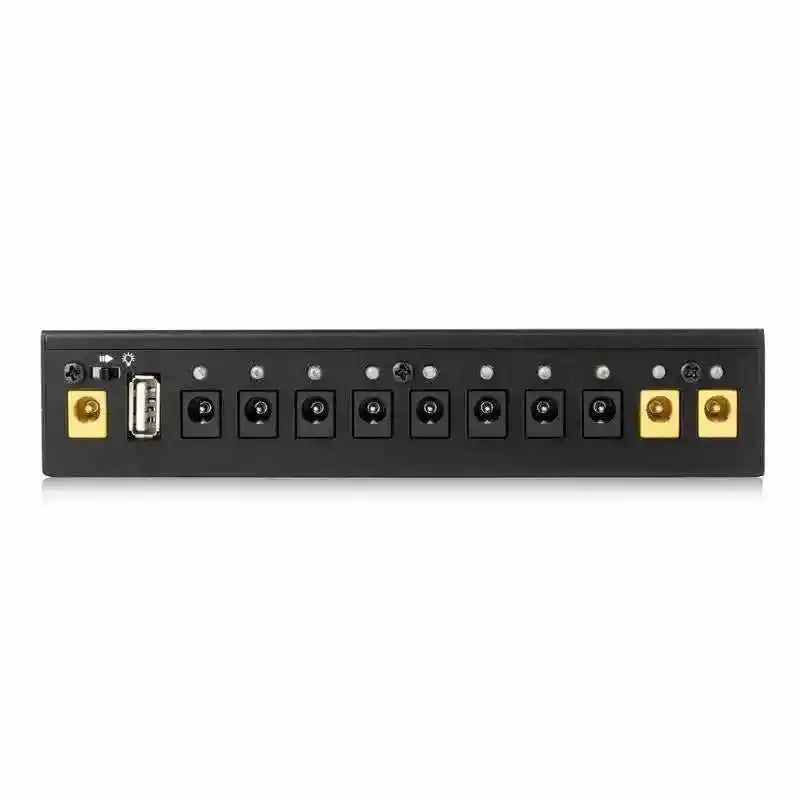

Caline CP-04 Power Supply Pedal

Specifications: Materials: Aluminum Alloy Powers 9V, 12V, or 18V guitar pedals USB port for charging iPhone, iPad, mobile phone Power Input: 18V 1A Power Adapter: AC 110-240V, 50/60Hz Output:

• 4 channels 9V 100mA
• 3 channels 9V 300mA
• 1 channel 9V 500mA
• 1 channel 12V 300mA
• 1 channel 18V 100mA

Features:

• Ten isolated outputs.
• Short-circuit isolated/overcurrent protection.
• 4 optional plugs: USA/EU/UK/AU Plug

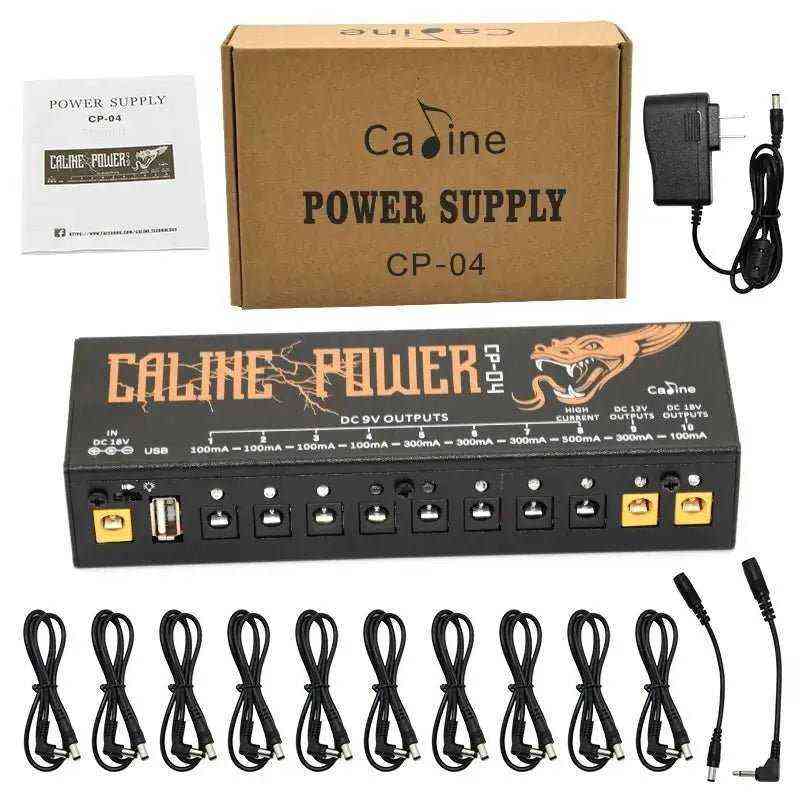

Package Included:

• 1x 10-way Pedal Power Supply
• 1x Power Adapter
• 2x Polarity Reversal Cables
• 10x DC Power Cables
• 1x User Manual

Please note:

1. SWITCH FOR LED LIGHTS: Turn the switch for these LED lights; typically, all lights would come on after power is connected. If you don't want all LED lights, please turn the switch again.
2. DC 18V INPUT: Please connect the power adapter output here and do not use an adapter from elsewhere. Using the power adapter without testing or certifications from our company may cause damage to the host or other devices.
