M-VAVE IR Box

The M-Vave IR Box is an effects pedal that uses Impulse Response (IR) technology to simulate classic guitar and bass cabinets. Below are the detailed specifications of the device:

Technical Specifications:

• Signal Processing:

  • Signal-to-Noise Ratio: 103 dB
  • Sampling Rate: 44.1 kHz at 24-bit
  • Latency: Less than 1.5 ms

• Presets:

  • 32 built-in presets:

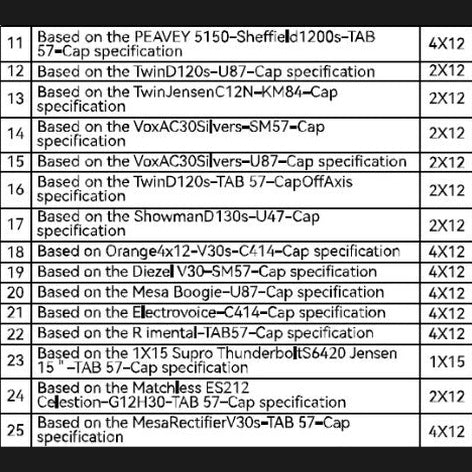

    • 25 guitar cabinet simulations (presets 01-25)
    • 7 bass cabinet simulations (presets 26-32)

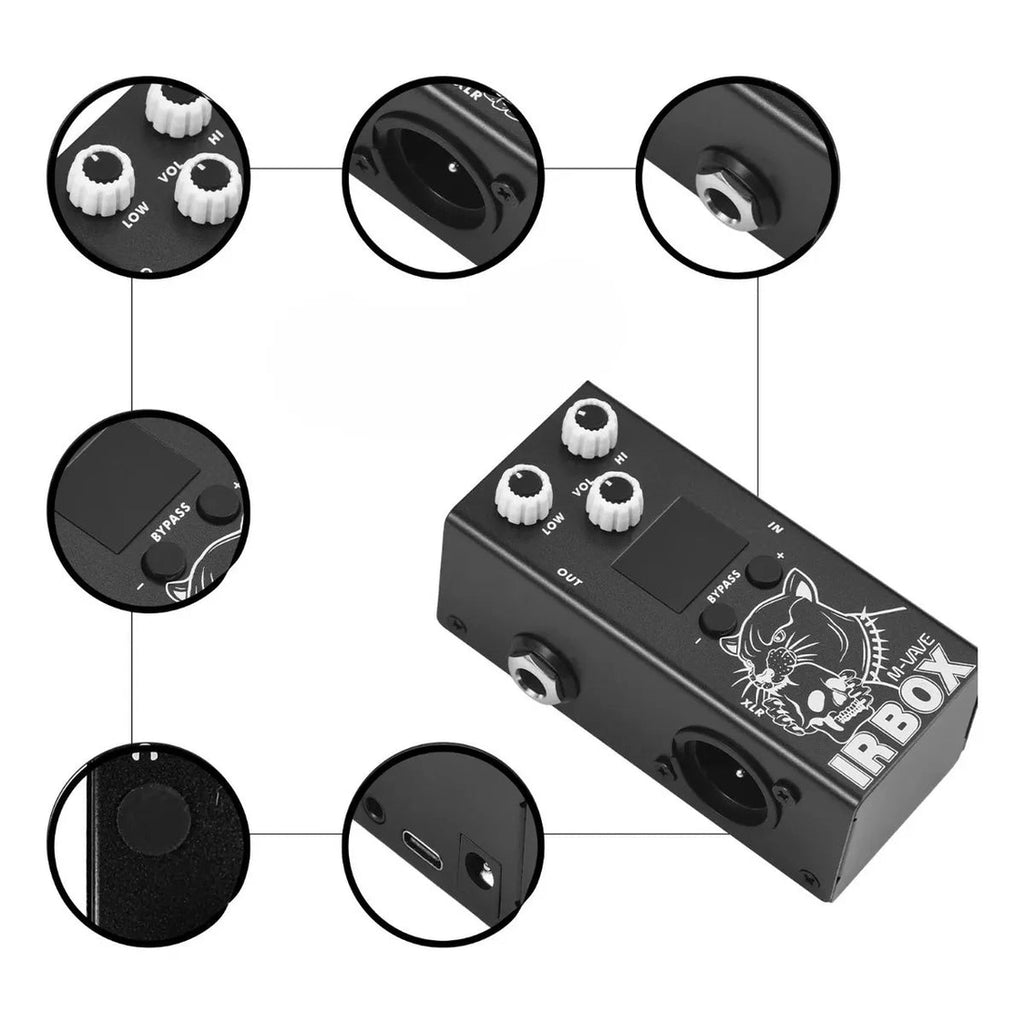

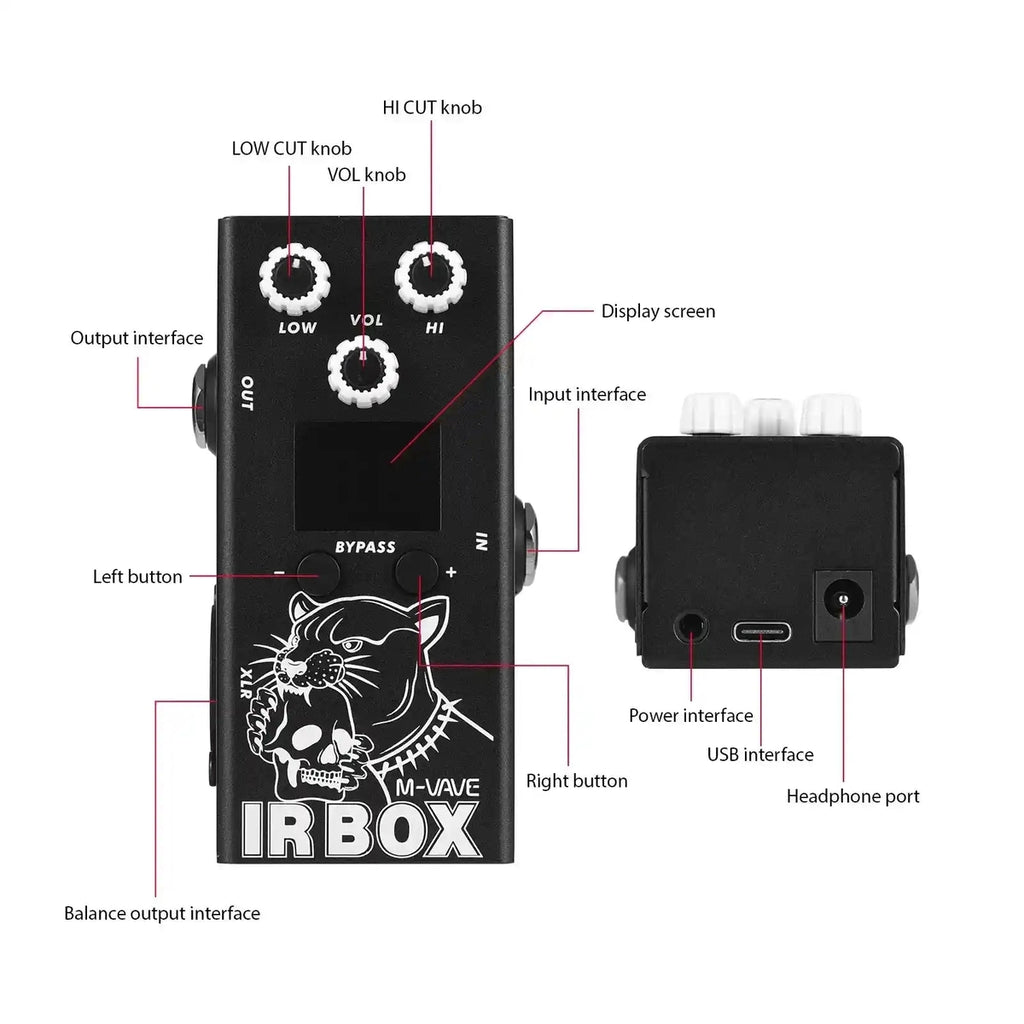

• Connectivity:

  • Input: 1/4" (6.35mm) mono jack
  • Unbalanced Output: 1/4" (6.35mm) TS jack
  • Balanced Output: XLR
  • Headphone Output: 1/8" (3.5mm) stereo jack
  • USB-C Port: For computer connection and power supply

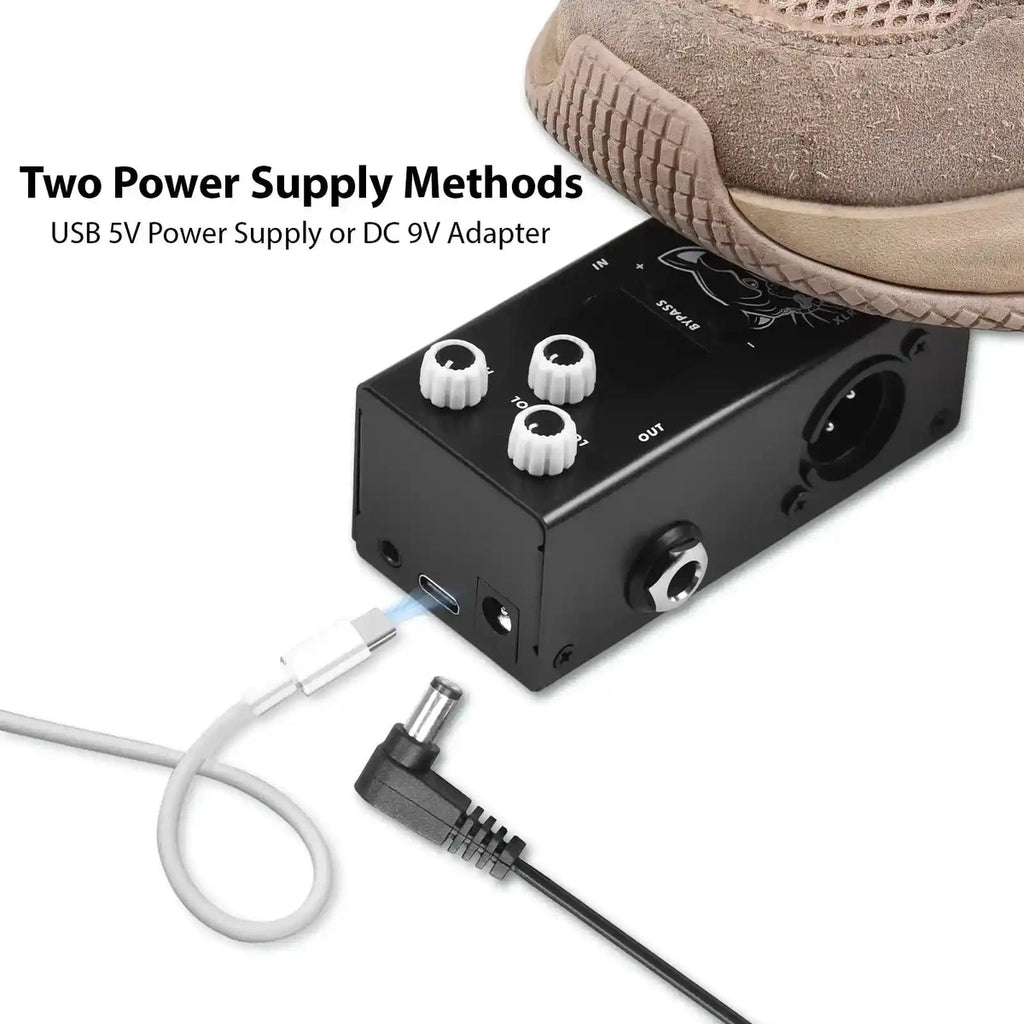

• Power Supply:

  • Option 1: 9V DC ≥ 300mA (power adapter not included)
  • Option 2: USB 5V ≥ 300mA

• Current Consumption:

  • 9V: 80mA
  • 5V: 120mA

• Dimensions & Weight:

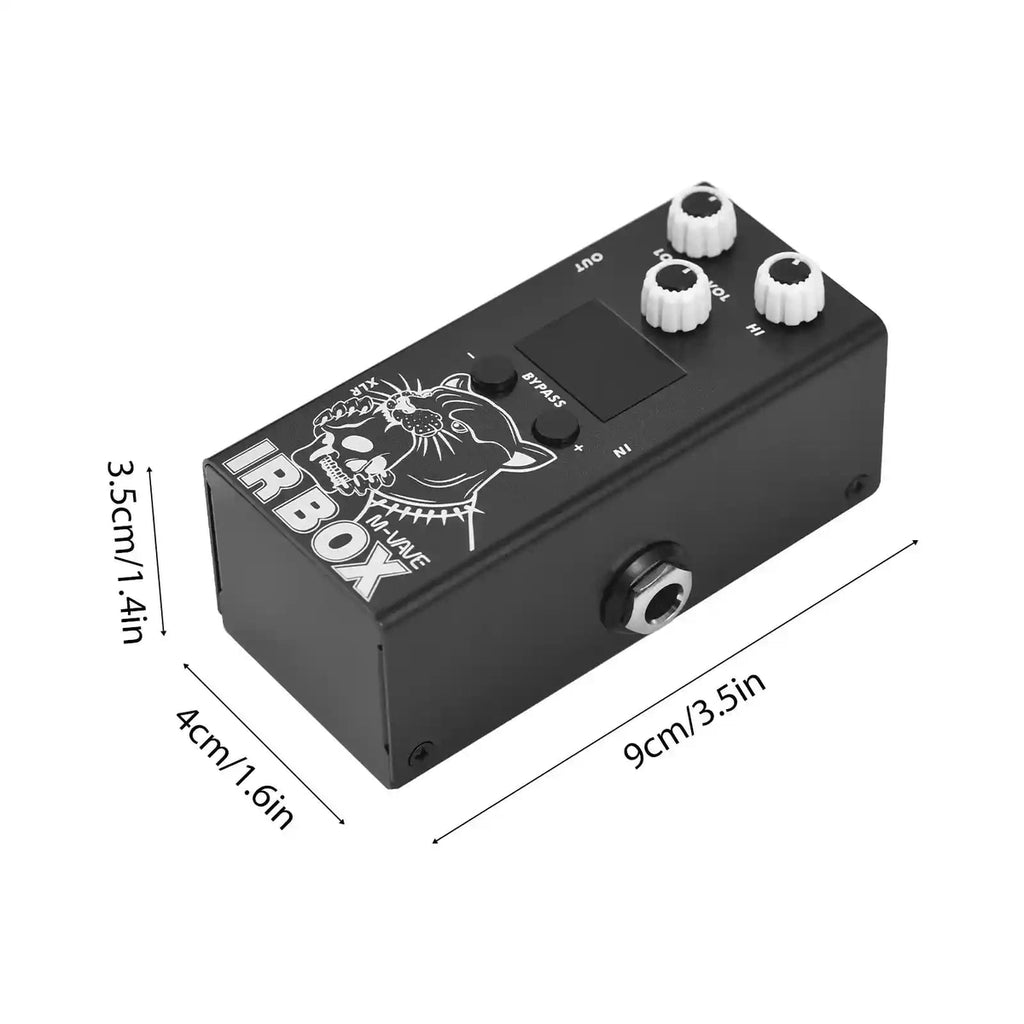

  • Size: 90mm (L) x 50mm (W) x 45mm (H)
  • Weight: 155g

• Additional Features:

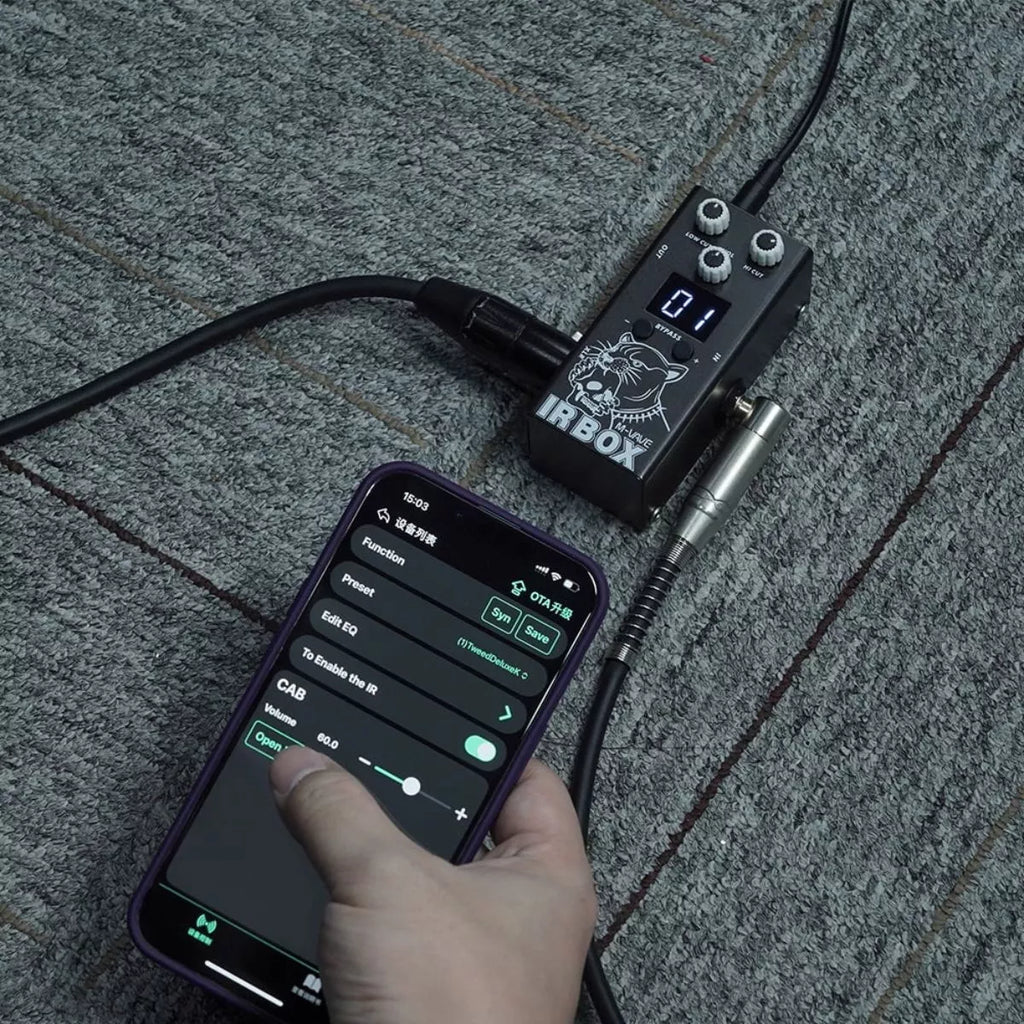

  • 9-band EQ module, adjustable via official software or mobile app
  • Supports third-party IR file loading (WAV format, 44.1kHz, 24-bit, 1024/2048 sample points)
  • Adjustable high and low-frequency cut filters directly on the pedal
  • The EQ module can operate independently when the IR module is disabled
  • Preset import/export support via the official software

These specifications highlight the versatility and quality of the M-Vave IR Box, making it a valuable tool for musicians looking to enhance their sound with realistic cabinet simulations.
